2106751-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2106751-2
Datasheet:
Description:

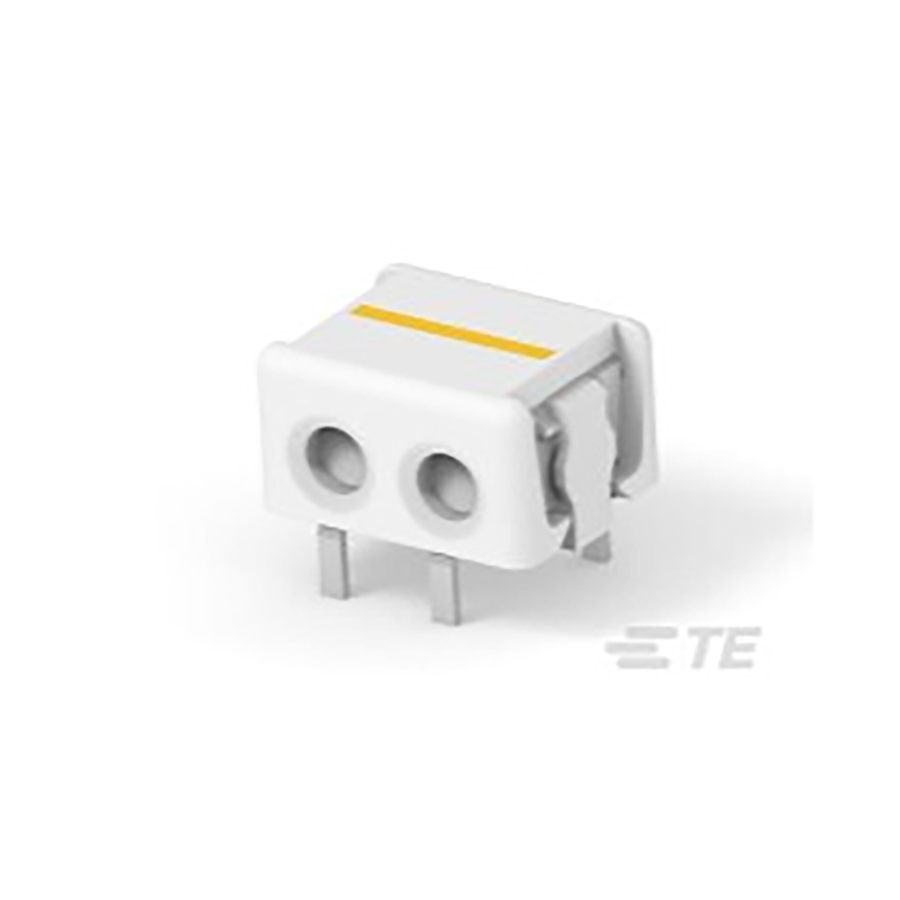

Headers and Wire Housings Through Hole Connector, Socket Number of Positions:2 Pitch:3.9878 mm
| Parameter | Value |
|---|---|
| Length | 9.7 mm |
| Width | 7.747 mm |
| Termination | IDT, Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 5.7912 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 7.75 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 3.9878 mm |
| Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Yellow |
| Gender | Receptacle |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Connector, Socket |
| Wire/Cable Gauge | 18 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 8.5 A |
| Housing Color | Natural |
| Insulation Diameter | 2.2 mm |
| Keyed | No |
| PCB Thickness | 1.5748 mm |
| Plating Thickness | 5.08 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Make First / Break Last | No |
| Sealable | No |
Stock: 1612
Distributors
pcbx
pcbxUnit Price$0.40010
Ext.Price$0.40010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40010 | $0.40010 |
| 10 | $0.38989 | $3.89890 |
| 25 | $0.37994 | $9.49850 |
| 50 | $0.37024 | $18.51200 |
| 100 | $0.36078 | $36.07800 |
| 300 | $0.34562 | $103.68600 |
| 500 | $0.33109 | $165.54500 |
| 1000 | $0.31718 | $317.18000 |
